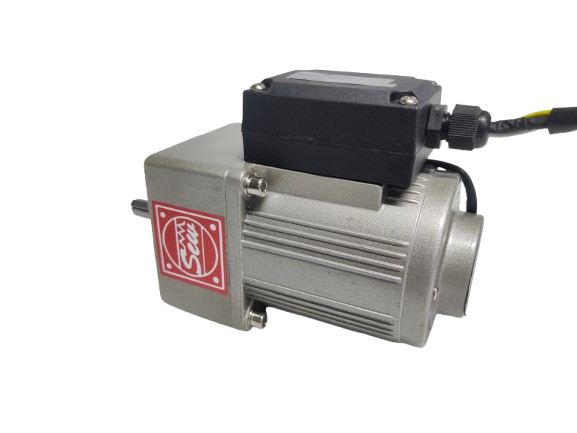

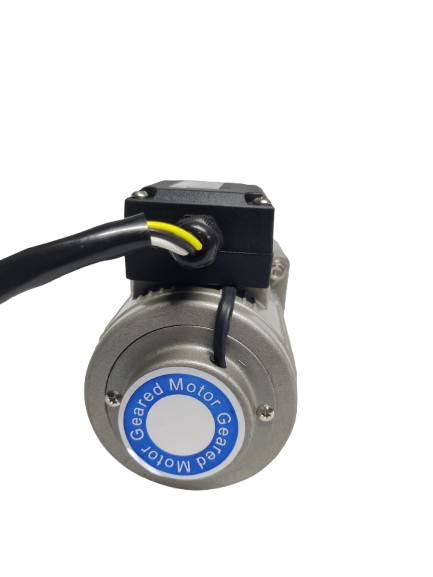

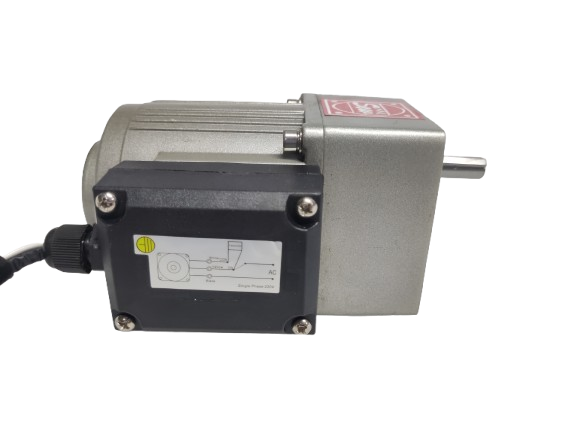

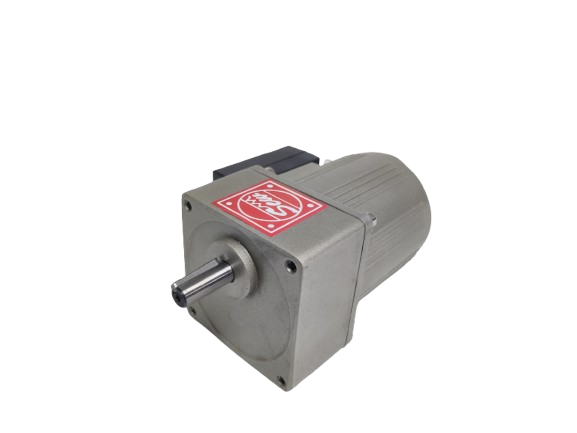

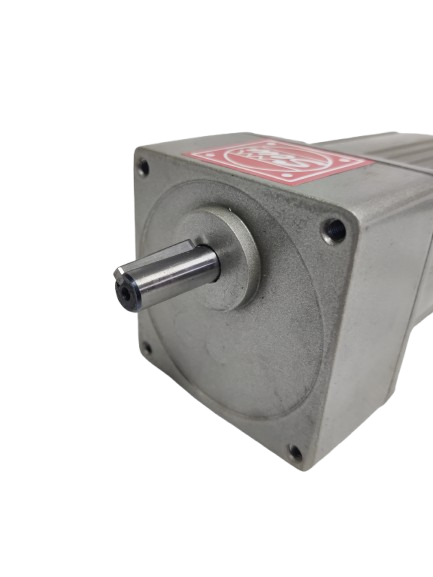

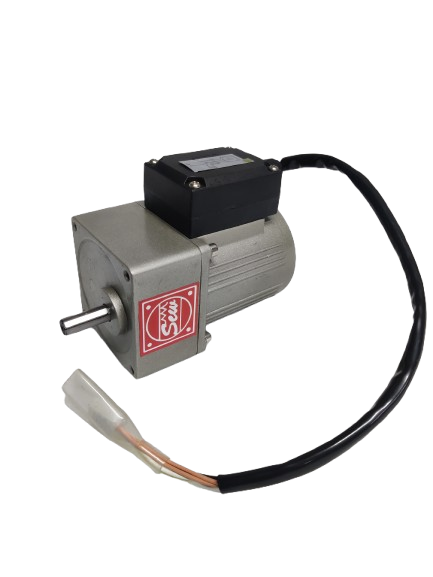

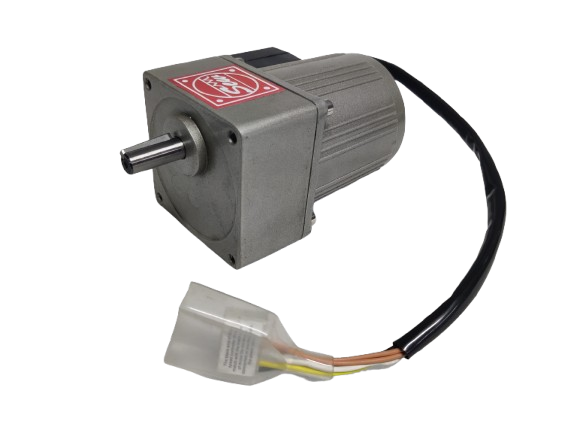

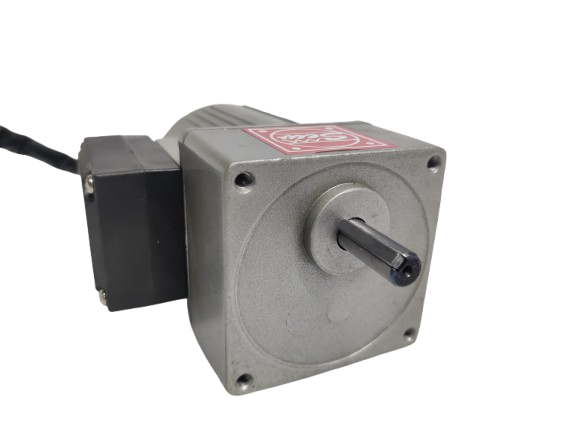

This is an AC motor with suitable Gear reducer for achieving require output RPM and Torque .
This motor is used to get high torque at low RPM .
it has compact size and low power consumption.
Motor Specifications :-
Wattage :- 25w
Voltage :- 230v AC
Current :- 0.5
Frequency :- 50 Hz
Rated Speed :- 60 RPM
Torque :- 3.94 Nm / 40.2 Kgf/cm
Capacitor :- 1.8 uf
PACKAGE INCLUDES :-
- 1 X AC 25W 230V 60RPM INLINE GEAR MOTOR
- 1 X 1.8 uf CAPACITOR
