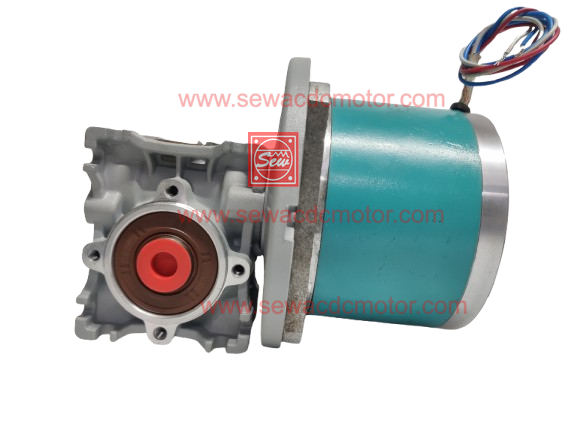

AC SYN 15SEW 250KG/CM 230V 2.5RPM Worm Gear Motor

These SEW motors are operated with single phase source with RC phase shifting network.

 motors are manufactured by using high grade copper, stamping, PVC papers, varnish and S.S. shafts.

- Instant Start, Stop &Reversible

- Low speed

- High Torque

- Insulation class –B

- Compact in size

- Noiseless functioning

- Gearing Possible( Kindly find some Gear motors available in our Products)

 - Powder Coated Cast Aluminum Body With Steel Shaft Easy to Operate

MOTOR SPECIFICATIONS:-

• Voltage - 230 V
• Current- 0.150 A
• Wattage - 40W
• Frequency - 50 HZ
• Capacitor - 1.25 ufd
• Resistor - 1K 30W  ( INCLUDED WITH MOTOR )
• Rated speed  - 2.5RPM
• Base motor speed- 60 RPM
• Gear ratio - 1 : 25
• Torque - 250 KG/CM

PACKAGE INCLUDES :-

• 1 X AC SYN 15SEW 250 KG/CM 230V 2.5RPM WORM GEAR MOTOR
• 1 X RC NETWORK (1K 30W RESISITOR WITH 1.25 UFD CAPACITOR)
• 1 X NOB ( FOR MANUAL OPERATION)
