These SEW motors are operated with single phase source with RC phase shifting network.
motors are manufactured by using high grade copper, stamping, PVC papers, varnish and S.S. shafts.
- Instant Start, Stop &Reversible
- Low speed
- High Torque
- Insulation class –B
- Compact in size
- Noiseless functioning
- Gearing Possible( Kindly find some Gear motors available in our Products)
- Powder Coated Cast Aluminum Body With Steel Shaft Easy to Operate
MOTOR SPECIFICATIONS:-
- Voltage - 230 V
- Current- 0.150 A
- Wattage - 40W
- Frequency - 50 HZ
- Capacitor - 1.25 ufd
- Resistor - 1K 30W ( INCLUDED WITH MOTOR )
- Rated speed - 60 RPM
- Torque -15 KG/CM

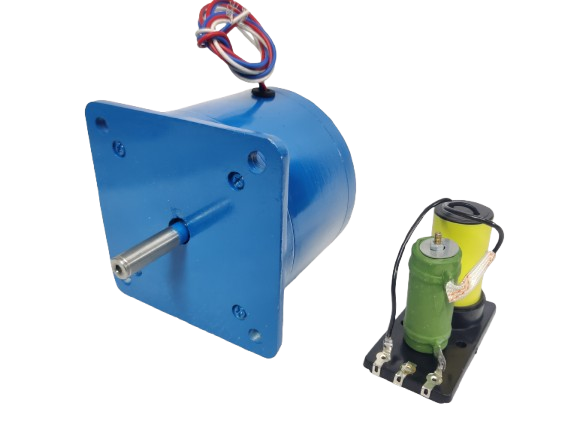

PACKAGE INCLUDES :-
- 1 X AC SYNCHRONOUS MOTOR 10 KG/CM TORQUE 230V 60RPM
- 1 X 15 KG RC NETWORK (1K 20W RESISITOR WITH 0.8 UFD CAPACITOR)
- 1 X NOB ( FOR MANUAL OPERATION)
