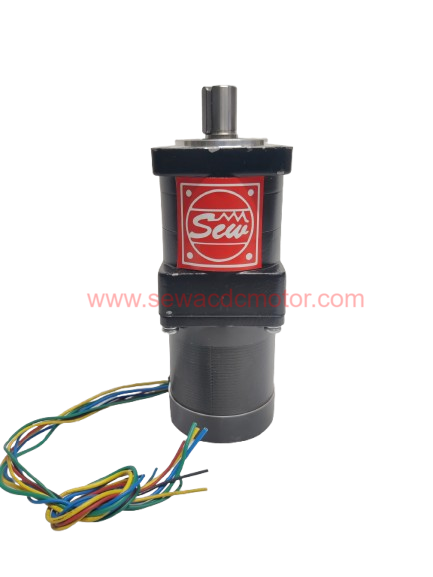

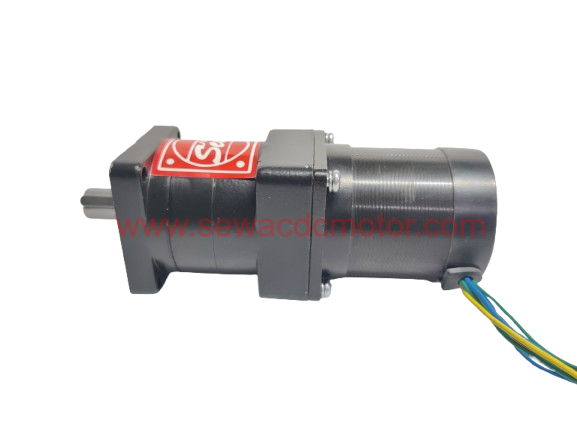

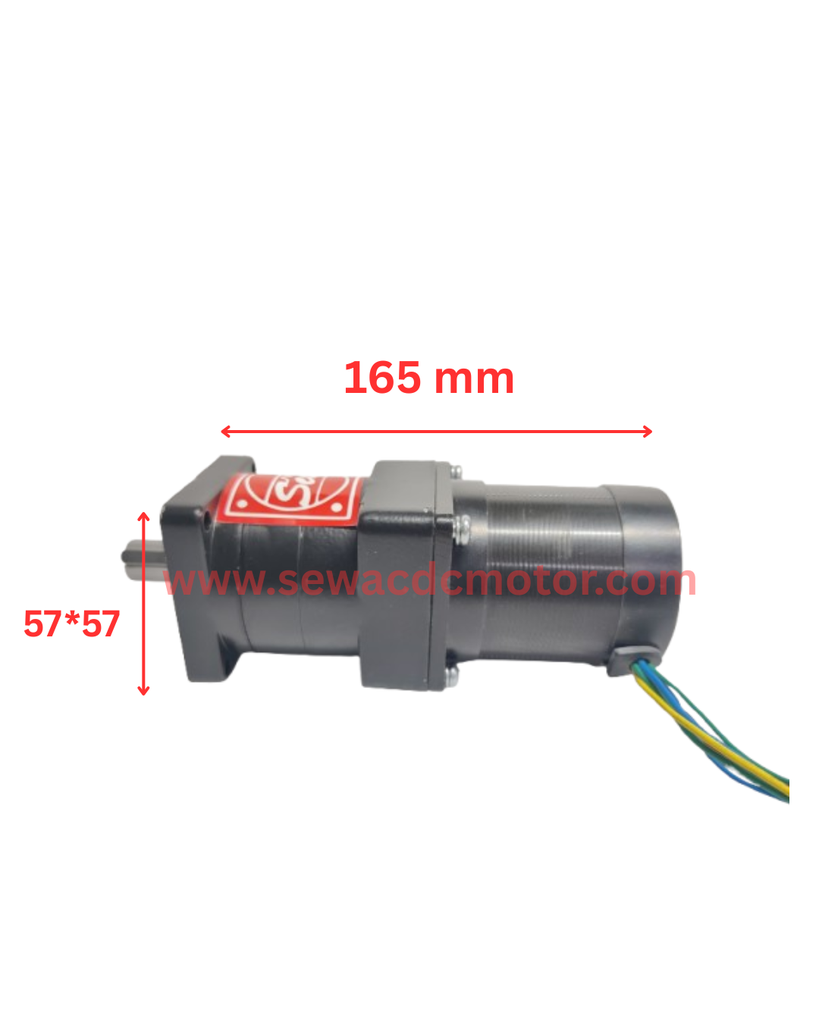

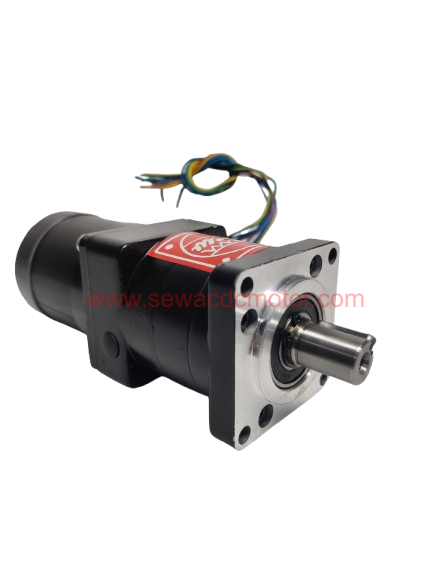

The BLDC 50W 24V 600RPM Motor has a rated torque of 12kg/cm the base motor of this motor is high quality industrial grade 50w 3000RPM motor,
which along with Planetary gearbox provides the 600RPM at the output shaft.

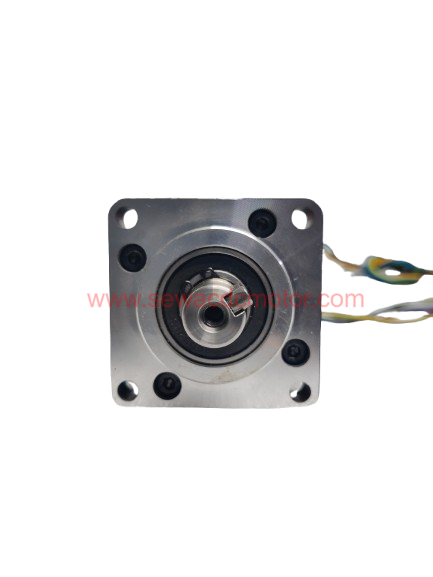

It has hollow output so customer can attach any size shaft according to their requirements.
This motor is good option for AGV and Robotics Applications.
Features :-
- High Torque in small size motor
- silent operation compare to other gear motors
- low power consumption
- continues use in industrial application
specifications :-
- Wattage - 50 W
- Voltage - 24 V
- Current - 3 Amp
- Speed - 600 RPM
- Base motor RPM - 3000 RPM
- Gear Ratio - 5 : 1
- Motor Weight - 3 KG

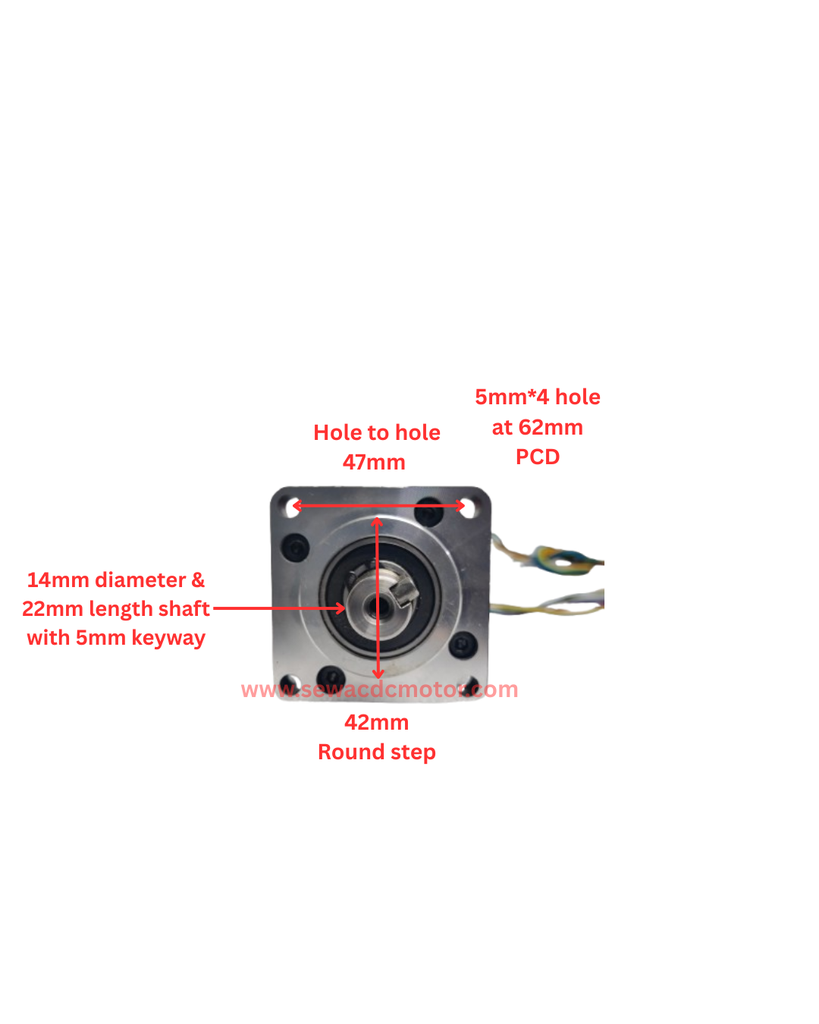

- Output shaft - 14mm * 22 mm
- Torque - 12Kg/Cm
- Protect grade - IP 33
- Insulation Class - E
Package Includes:-
1 X BLDC 50W 24V 600RPM 12Kg/cm PLANETARY GEAR MOTOR
