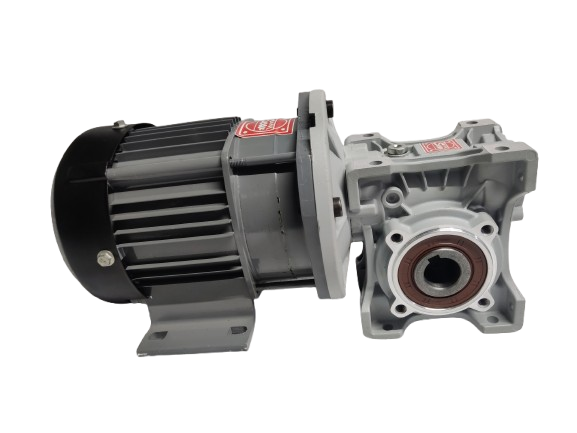

The BLDC 750W 48V 30RPM Motor has a rated torque of 900kg/cm the base motor of this motor is high quality industrial grade 750w 3000RPM motor,
which along with the sturdy all Nylon Planetary gearbox and and worm gearbox provides the 30RPM at the output hollow.
It has hollow output so customer can attach any size shaft according to their requirements.
This motor is good option for AGV and Robotics Applications.
Features :-
- High Torque in small size motor
- silent operation compare to other gear motors
- low power consumption
- continues use in industrial application
specifications :-
- Wattage - 750 W
- Voltage - 48 V
- Current - 16 Amp
- Speed - 30 RPM
- Base motor RPM - 3000 RPM
- Gear Ratio - 100 : 1
- Motor Weight - 10KG
- Output Hollow - 25 mm
- Torque - 900Kg/Cm
- Protect grade - IP 33
- Insulation Class - E
Package Includes:-
1 X BLDC 750W 48V 30RPM 900Kg/cm GEAR MOTOR
