The PMDC 150w 180v 30RPM Motor has a rated torque of 300kg/cm the base motor of this motor is high quality industrial grade 150w 2000RPM motor,
which along with the sturdy all metal spur gearbox provides the 30 RPM at the output.
It has 12mm shaft so customer can attach any load according to their requirements.
This motor is good option for machinery and industrial Applications.
Features :-
- High Torque in small size motor
- silent operation compare to other gear motors
- low power consumption
- continues use in industrial application
specifications :-
- Wattage - 150 W
- Voltage - 180 V
- Current - 6 Amp
- Speed - 30 RPM
- Base motor RPM - 2000 RPM
- Gear Ratio - 60 : 1
- Motor Weight - 4 KG

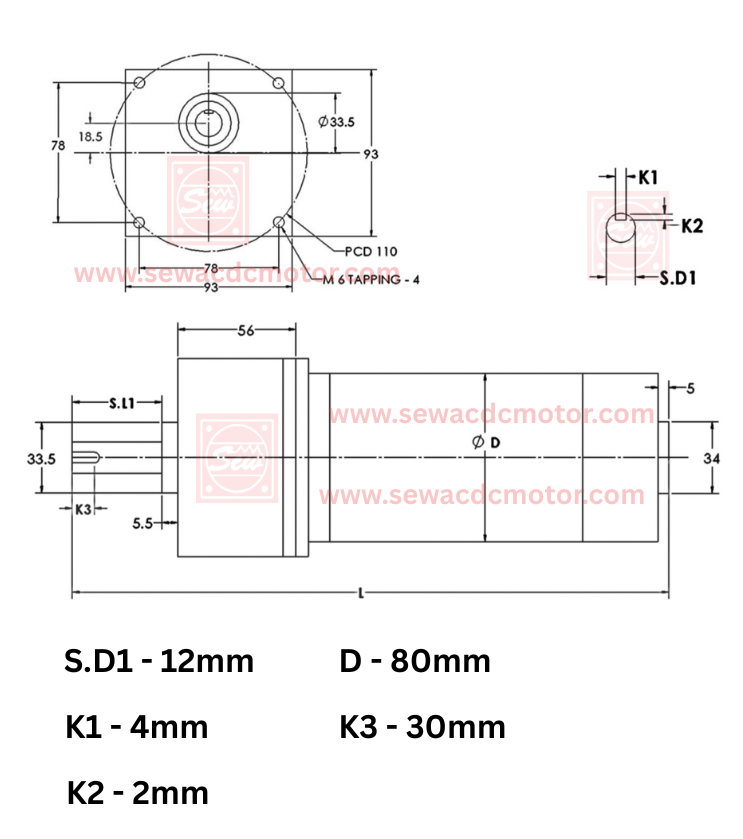

- Output shaft - 12 mm / 4 mm keyway
- Torque - 300Kg/Cm
- Protect grade - IP 33
- Insulation Class - E
Package Includes:-
1 X PMDC 150W 180V 30RPM 300 KG/CM INLINE GEAR MOTOR
