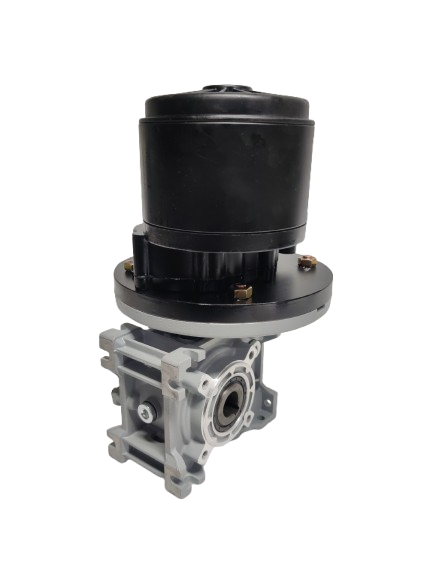

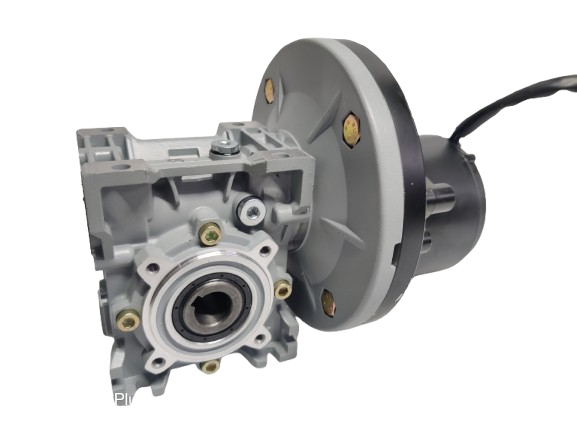

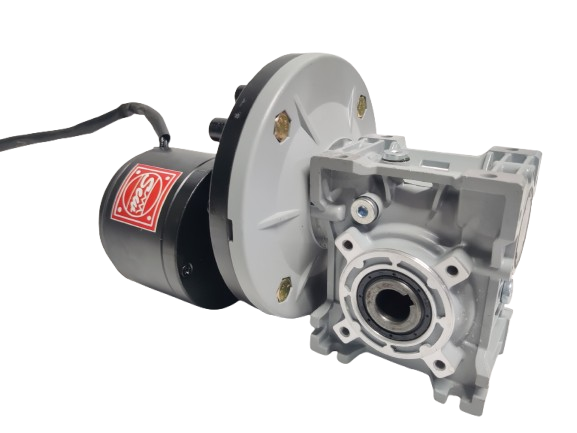

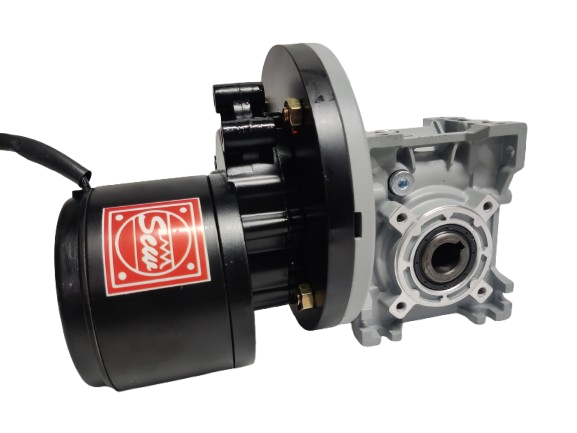

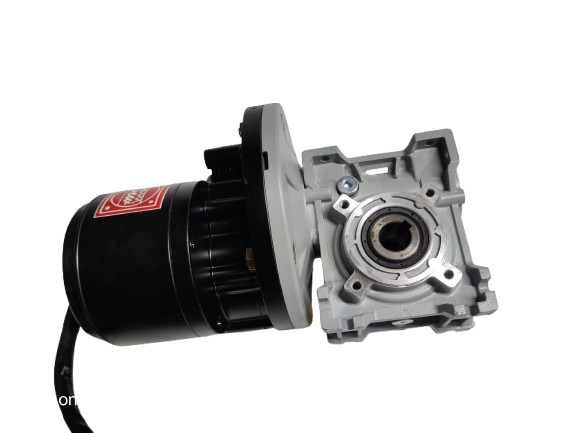

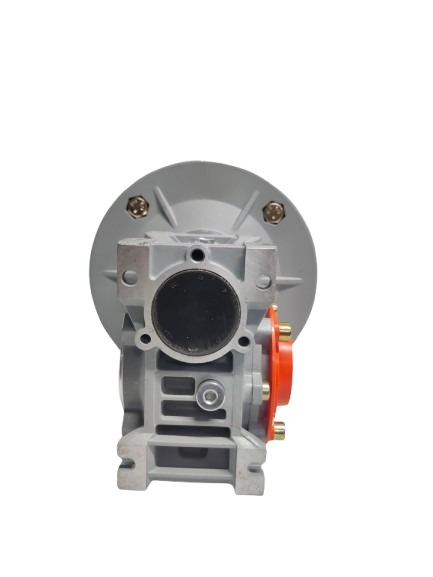

PMDC 250W 24V 15RPM 700 Kg/cm High Torque Worm Gear Motor

https://sewacdcmotor.com/web/image/product.template/89/image_1920?unique=f2538c2

₹ 10,480.00 10480.0 INR ₹ 10,480.00

₹ 10,480.00

Not Available For Sale

This combination does not exist.


The PMDC 250W 24V 15RPM Motor has a rated torque of 700kg/cm the base motor of this motor is high quality industrial grade 250w 3000RPM motor,

which along with the sturdy all metal spur gearbox and and worm gearbox  provides the 15RPM at the output hollow.

It has hollow output so customer can attach any size shaft according to their requirements.

This motor is good option for AGV and Robotics Applications.




Features :-

-  High Torque in small size motor

- silent operation compare to other gear motors

- low power consumption

- continues use in industrial application

specifications :-

  • Wattage - 250 W
  • Voltage - 24 V
  • Current - 13 Amp
  • Speed - 15 RPM
  • Base motor RPM - 3000 RPM
  • Gear Ratio - 200 : 1
  • Motor Weight - 6 KG
  • Output Hollow - 25 mm
  • Torque - 700Kg/Cm
  • Protect grade - IP 33
  • Insulation Class - E

 Package Includes:-

1 X  PMDC 250W 24V 15RPM 700KG/CM GEAR MOTOR
