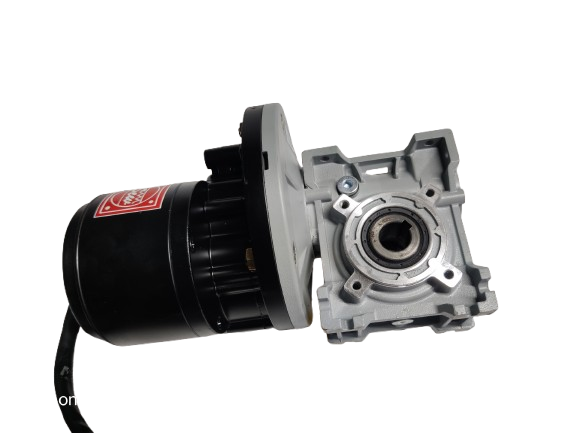

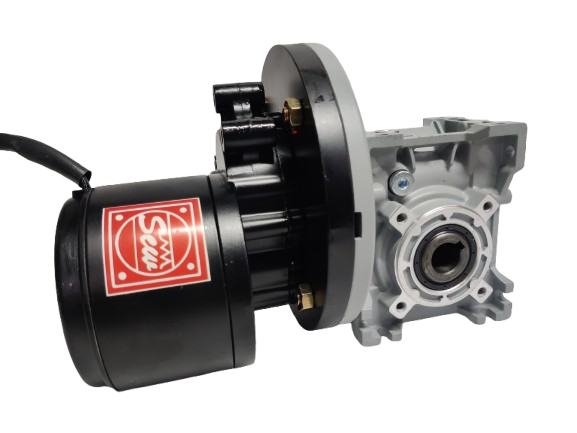

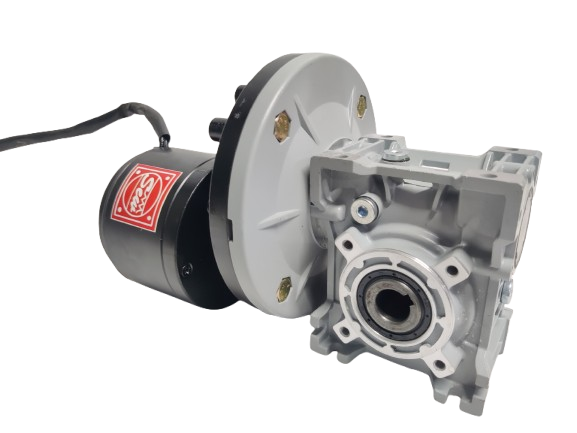

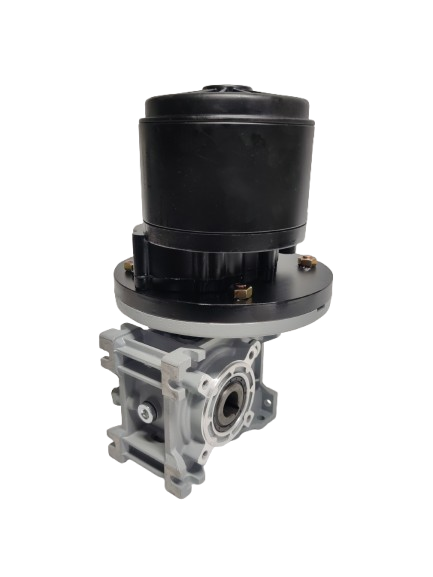

The PMDC 250W 24V 30RPM Motor has a rated torque of 400kg/cm the base motor of this motor is high quality industrial grade 250w 3000RPM motor,
which along with the sturdy all metal spur gearbox and and worm gearbox provides the 30RPM at the output hollow.

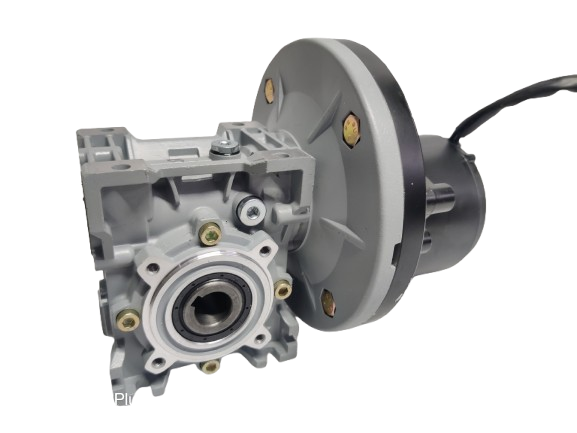

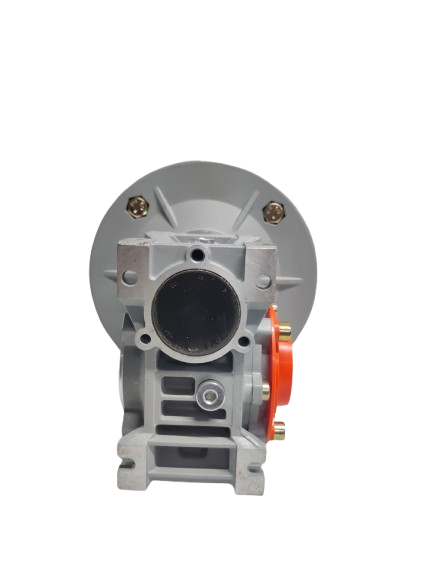

It has hollow output so customer can attach any size shaft according to their requirements.
This motor is good option for AGV and Robotics Applications.
Features :-
- High Torque in small size motor
- silent operation compare to other gear motors
- low power consumption
- continues use in industrial application
specifications :-
- Wattage - 250 W
- Voltage - 24 V
- Current - 13 Amp
- Speed - 30 RPM
- Base motor RPM - 3000 RPM
- Gear Ratio - 100 : 1
- Motor Weight - 6 KG
- Output Hollow - 25 mm
- Torque - 400Kg/Cm
- Protect grade - IP 33
- Insulation Class - E
Package Includes:-
1 X PMDC 250W 24V 30RPM 400KG/CM GEAR MOTOR
