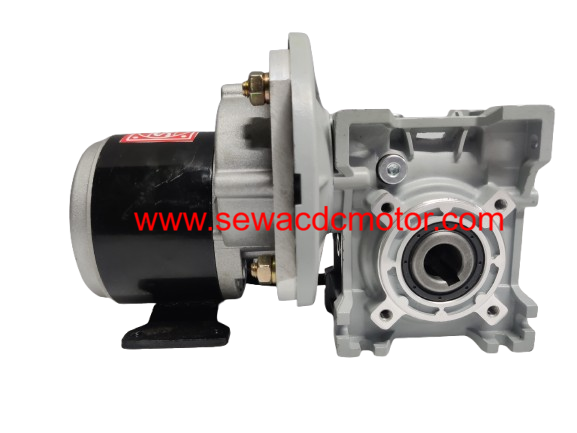

PMDC 350W 24V 25RPM 900 KG/CM WORM GEAR MOTOR

The  Motor  PMDC 350W 24V 25RPM 900 KG/CM WORM GEAR  has a rated torque of 900kg/cm the base motor of this motor is high quality industrial grad,

which along with the sturdy all metal spur gearbox and and worm gearbox  provides the 25RPM at the output hollow.

It has hollow output so customer can attach any size shaft according to their requirements.

This motor is good option for AGV and Robotics Applications.

Features :-

-  High Torque in small size motor

- silent operation compare to other gear motors

- low power consumption

- continues use in industrial application

specifications :-

• Wattage - 350 W
• Voltage - 24 V
• Current - 19.2 Amp
• Speed - 25 RPM
• Base motor RPM - 3000 RPM
• Gear Ratio - 120 : 1
• Motor Weight - 6 KG
• Output Hollow - 18 mm
• Torque - 900Kg/Cm
• Protect grade - IP 33
• Insulation Class - E

 Package Includes:-

1 X PMDC 350W 24V 25RPM 900 KG/CM WORM GEAR MOTOR
