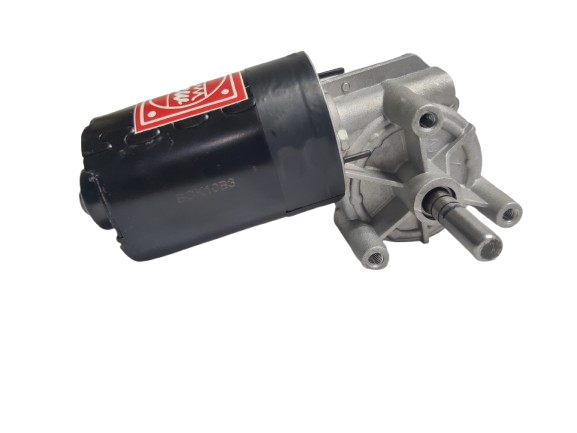

The PMDC Wiper Type 100W 12V 20RPM Motor has a rated torque of 50kg/cm the base motor of this motor is high quality industrial grade 100w 1500RPM motor,
which along with the sturdy worm gearbox provides the 20RPM at the output shaft.
It has output shaft of 10mm Diameter and 35mm length so customer can use it according to their requirements.
Features :-
- High Torque in small size motor
- silent operation compare to other gear motors
- low power consumption.
- continues use in industrial application
specifications :-
- Wattage - 100 W
- Voltage - 12 V
- Current - 4 Amp
- Speed - 20 RPM
- Base motor RPM - 1500 RPM
- Gear Ratio - 75 : 1
- Motor Weight - 1.5 KG
- Output shaft diameter - 10 mm
- Output shaft Length - 35 mm
- Torque - 50Kg/Cm
Package Includes:-
1 X PMDC 100W 12V 20RPM 50KG/CM GEAR MOTOR
