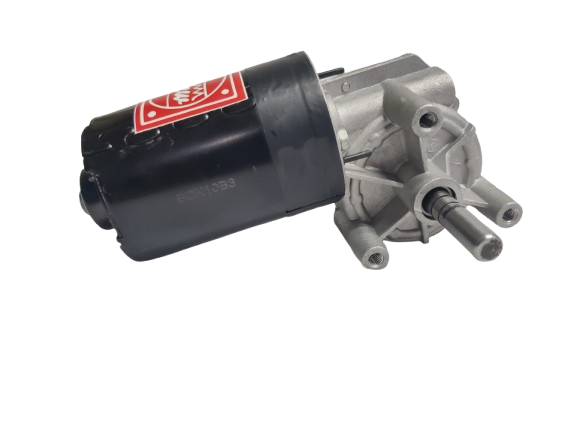

PMDC Wiper Type 100w 24v 40RPM 100 Kg/cm worm gear motor

The PMDC Wiper Type 100W 24V 40RPM Motor has a rated torque of 100kg/cm the base motor of this motor is high quality industrial grade 100w 3000RPM motor,

which along with the sturdy worm gearbox  provides the 40RPM at the output shaft.

It has output shaft of 10mm Diameter and 35mm length  so customer can use it according to their requirements.

Features :-

-  High Torque in small size motor

- silent operation compare to other gear motors

- low power consumption.

- continues use in industrial application

specifications :-

• Wattage - 100 W
• Voltage - 24 V
• Current - 4 Amp
• Speed - 40 RPM
• Base motor RPM - 3000 RPM
• Gear Ratio - 75 : 1
• Motor Weight - 1.5 KG
• Output shaft diameter  - 10 mm
• Output shaft Length - 35 mm
• Torque - 100Kg/Cm

 Package Includes:-

1 X  PMDC 100W 24V 40RPM 100KG/CM GEAR MOTOR
